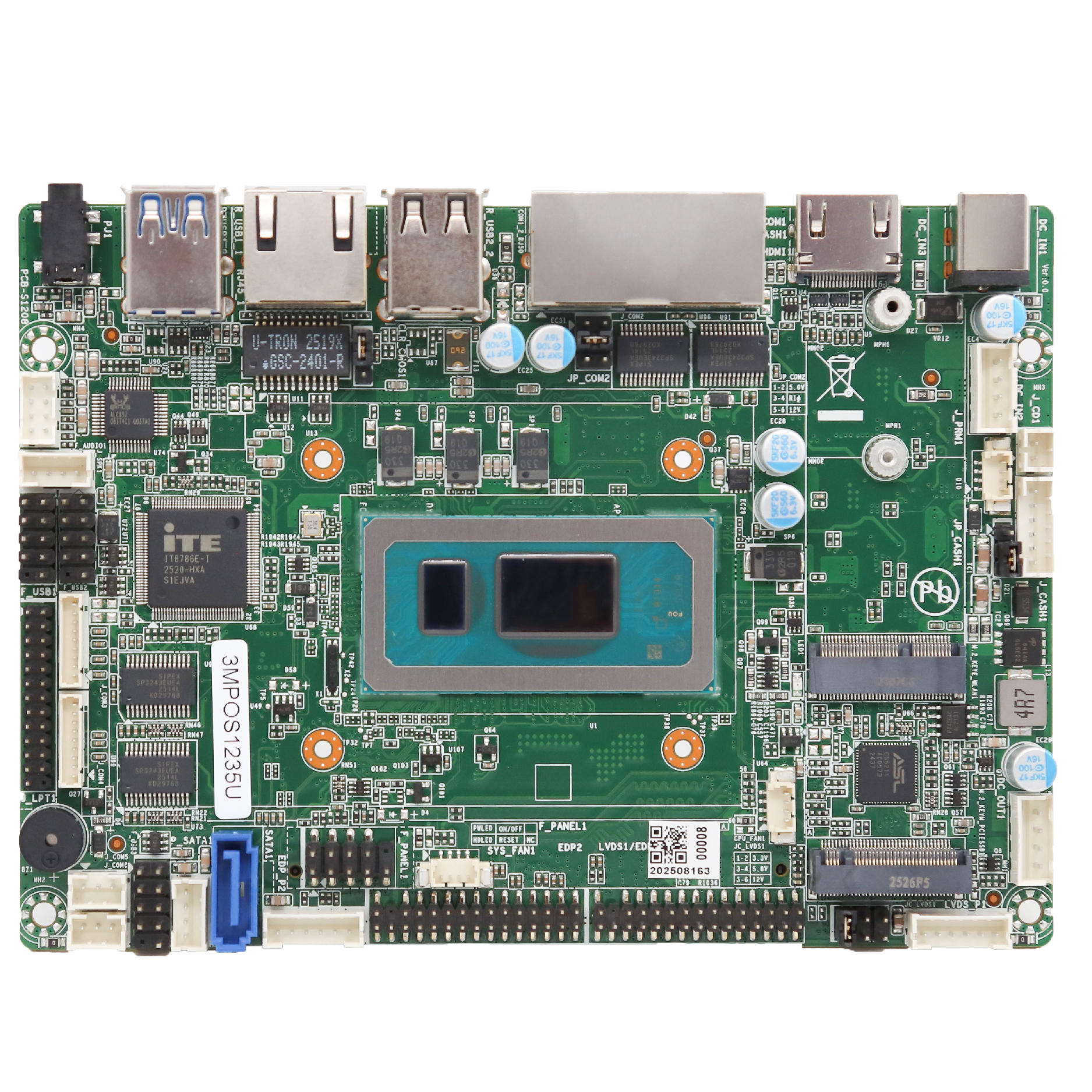

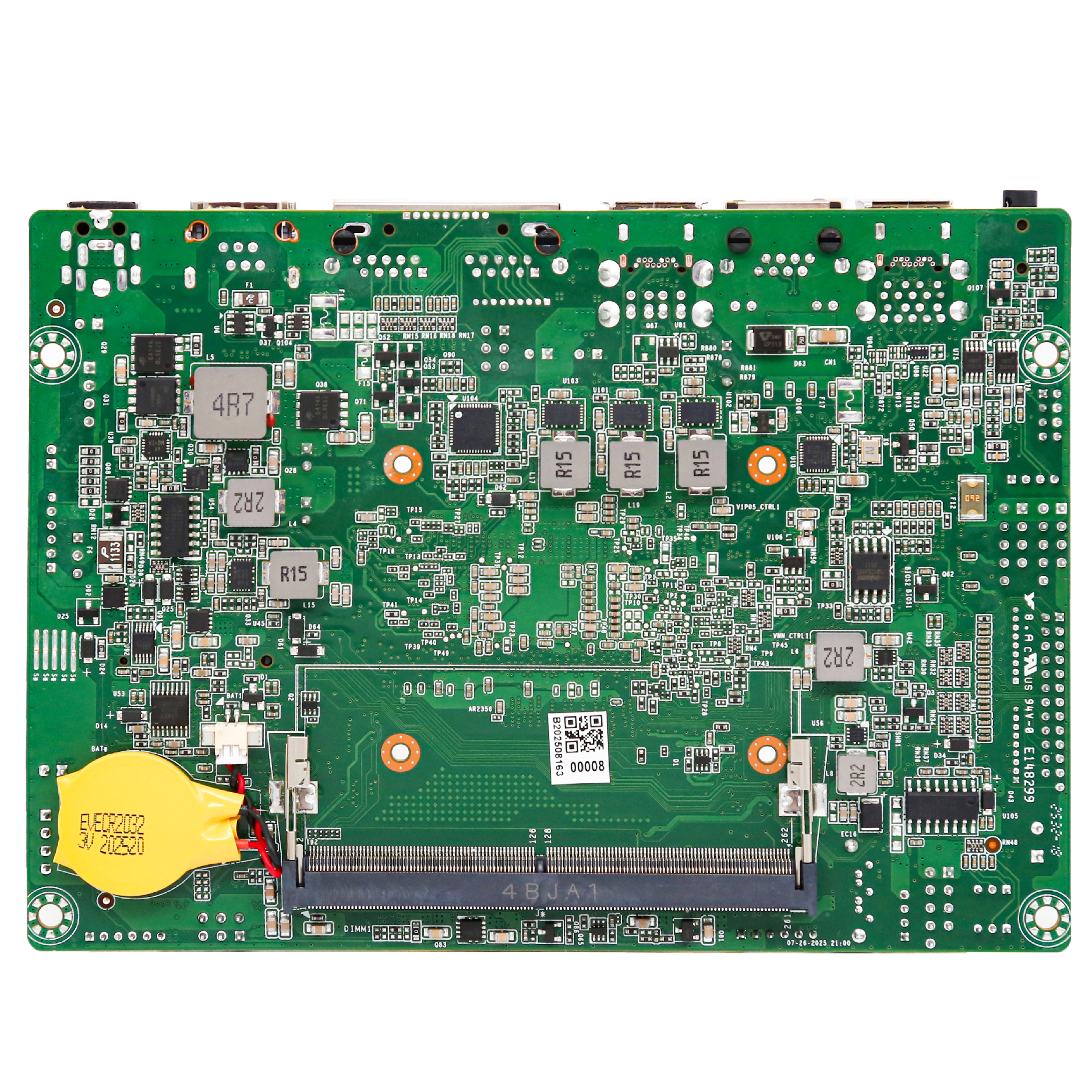

sv3-mpos1235u
采用intel alder lake 系列i3-1235u处理器, 2*usb3.0, 7*usb2.0, 1*sata3.0, 1*千兆网口, 6*com
- 采用intel alder lake系列i3-1235u处理器
- 2*usb 3.2 gen1, 7*usb 2.0, 6*com, 1*千兆网口
- 1*sata 3.0, 1*m.2 m-key, 1* m.2 e-key
- 1*hdmi, 1*edp, 1*lvds
- 3.5英寸, 12v直流供电
规格
|
general |
|
|
cpu |
intel® alder lake series processors, i3-1235u |
|
memory |
ddr5-4800, 1*so-dimm, up to 32gb |
|
storage |
1*sata 3.0 1*m.2 (m-key 2280, nvme/sata ssd) |
|
expansion |
1*m.2 (e-key 2230, pcle usb2.0) |
|
bios |
ami uefi bios |
| os |
windows 10/11 64bit, linux |
|

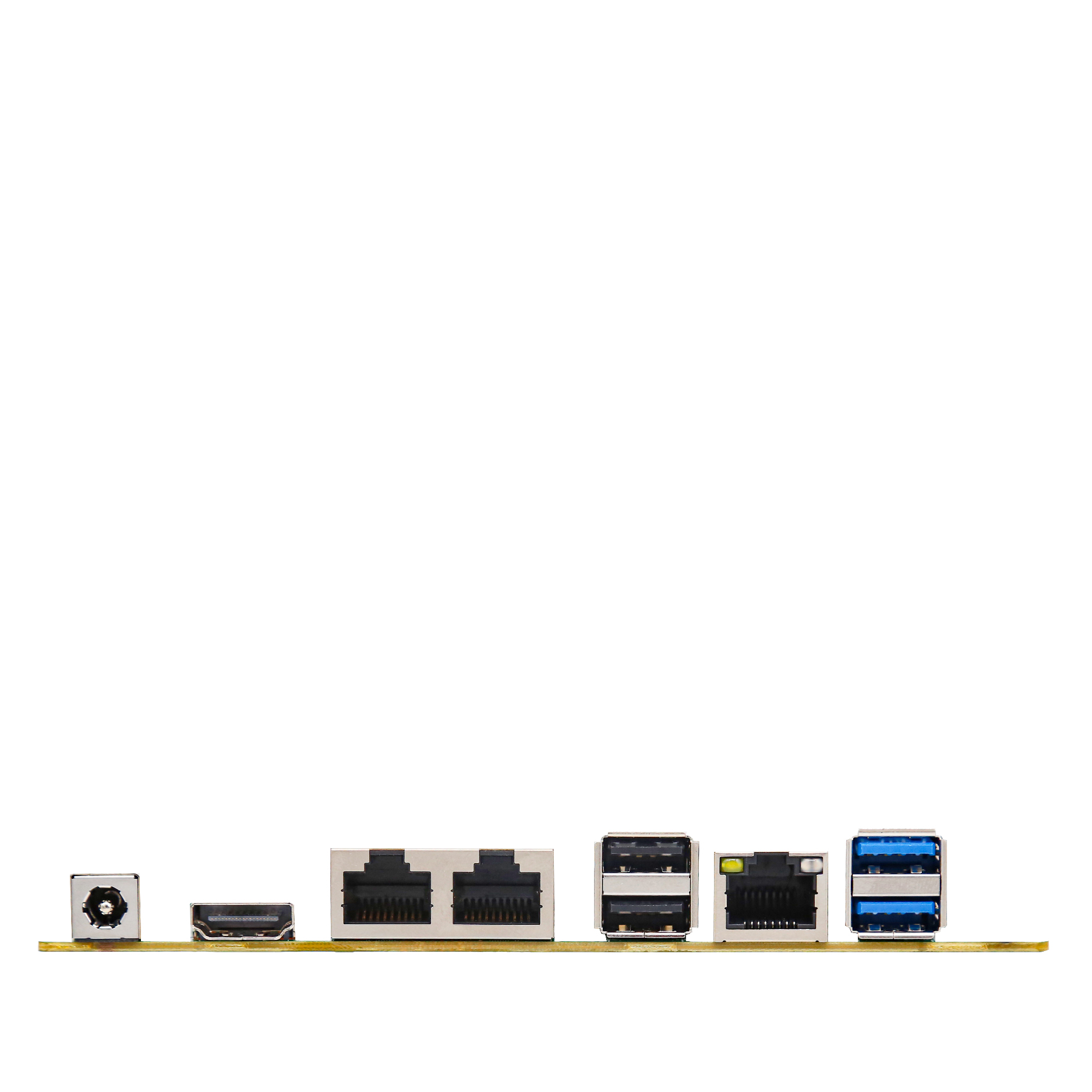

i/o |
|
|
ethernet |
1*intel gbe lan |
|
serial |
6*rs232 |
|
usb |
2*usb 3.2 gen1, 7*usb 2.0 |
|
audio |
realtek hda codec, with 1*line-out mic and 1*amplifier |
|
others |
1*lpt, 1*cash drawer |
|
display |
|
|
display interface |
1*hdmi, 1*edp, 1*lvds |
|
multiple display |
triple |
|
mechanical & environment |
|
|
dimension |
146*105mm |
|
power input |
dc 12v power input |
| temperature |
operation: 0℃~60℃, storage: -20℃~75℃ |
|
relative humidity |
5%~95%, non-condensing |
