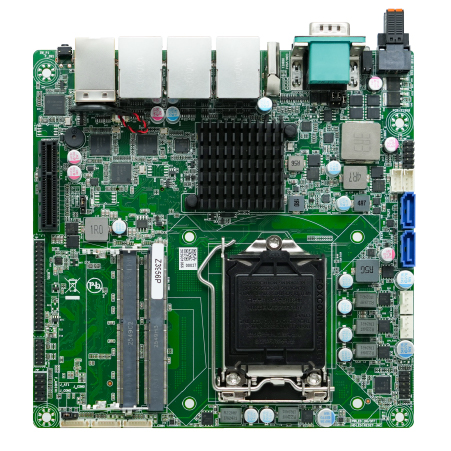

sv1-z3956p
intel 6/8/9代 core, pentium, celeron 处理器, z390芯片, 4*com, 8*usb, 5*lan, 1*pcle x4
- 支持intel 6/8/9 代 core,pentium,celeron 处理器
- 采用 intel z390 芯片组
- 8*usb, 4*uart, 5*千兆网口
- 2*sata3.0, 1*pcle x4, 2*m.2, 支持wifi bluetooth
- 1*hdmi, 1*vga, 支持双屏异显
规格
|
general |
|
|
cpu |
intel® core™ 6/8/9th gen i3/5/7/9, pentium®, celeron® processors, lga-1151 |
|
chipset |
intel® z390, max tdp 6w |
|
memory |
ddr4-2666, 2*so-dimm, up to 64gb |
|
storage |
4*sata 3.0, 1*m.2(key-m 2280, sata/pcie x4, nvme/sata ssd) |
|
expansion |
1*pcle x4, 1*m.2(key-e 2230, pcle usb2.0, wifi bluetooth) 1*expansion card |
|
bios |
ami uefi bios |
| os |
windows 10/11 64bit, linux |
| tpm |
ftpm2.0 |
|
i/o |
|
|
ethernet |
5*intel® gbe controller, rj45 |
|
serial |
2*rs232, 2*rs232/rs485 |
|
usb |
6*usb 3.0, 2*usb 2.0 |
|
audio |
realtek hda codec, with mic/line-out |
|
gpio |
8*programmable gpio |
|
others |
1*front panel, 2*fan, 1*led, 1*power button, 1*watch dog timer |
|
display |
|
|
display interface |
1*hdmi: max 1920*1080@60hz 1*vga: max 1920*1200@60hz |
|
mechanical & environment |
|
|
dimension |
170*170mm |
|
power input |
dc 12v/24v |
| temperature |
operation: 0℃~60℃, storage: -25℃~75℃ |
|
relative humidity |
operation: 10%~90%, storage: 5%~95%, non-condensing |
