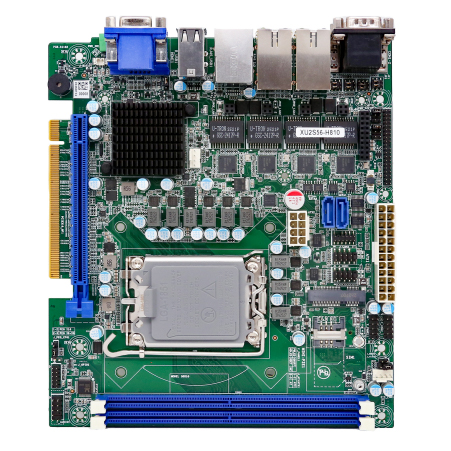

svx-u2s56
intel core ultra processors (series 2), h810芯片组, 4*com, 8*usb, 5*lan, 1*pcie x16, 1*mini pcie
- 支持intel core ultra (series2) 系列处理器, lga-1851
- 采用intel h810芯片组
- 5*千兆网口,4*usb 3.2 gen1, 4*usb 2.0, 4*uart
- 2*sata3.0, 1*m.2, 1*pcie x16, 1*golden finger
- 1*mini pcie, 支持poe供电
- 1*hdmi, 1*vga
规格
|
general |
|
|
cpu |
intel® core™ ultra processors (series 2), lga-1851 |
|
chipset |
intel® h810, max tdp 6w |
|
memory |
ddr5-5600, 2*u-dimm, up to 128gb |
|
storage |
2*sata gen3.0, 1*m.2(key-m 2280, pcie x2) |
|
expansion |
1*pcie x16, 1*golden finger(2*pcie x1 usb2.0), 1*mini pcie(sata usb2.0), 1*sim, 1*poe power, 1*expansion io(2*rs232 2*usb2.0 espi) |
|
bios |
ami uefi bios |
| os |
windows 10/11 64bit, linux |
|

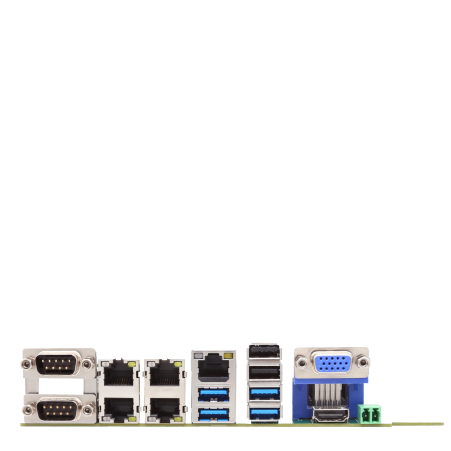

i/o |
|
|
ethernet |
5*intel® gbe controller, rj45 |
|
serial |
4*rs232 |
|
usb |
4*usb 3.2 gen1, 4*usb 2.0 |
|
audio |
realtek hda codec, with mic/line-out |
|
gpio |
8*programmable gpio |
|
others |
1*front panel, 1*power on, 1*case open, 2*fan |
|
display |
|
|
display interface |
1*hdmi: max 4096*2160@30hz 1*vga: max 1920*1080@60hz |
|
mechanical & environment |
|
|
dimension |
208*180mm |
|
power input |
atx psu |
| temperature |
operation: 0℃~60℃, storage: -20℃~75℃ |
|
relative humidity |
operation: 10%~90%, storage: 5%~95%, non-condensing |
