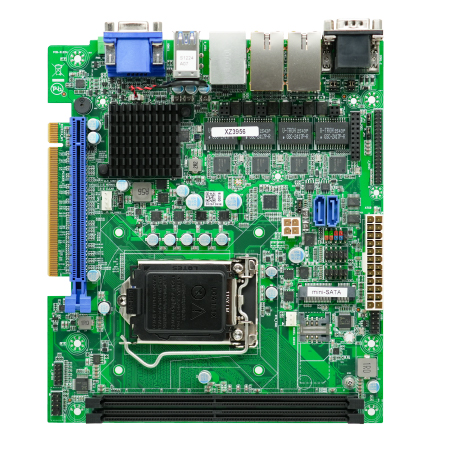

svx-z3956p
intel 6/8/9代 core i3/5/7/9 处理器, 6*com, 8*usb, 5*lan, 1*pcie x16/pcie x16 gf, 1*mini-pcie
- 支持intel 6/8/9代 core i3/5/7/9 处理器
- 采用intel z390芯片组
- 5*intel千兆网口
- 6*usb3.2 gen1, 2*usb2.0
- 1*hdmi, 1*vga
- 1*pcie x16/pcie x16 gf, 1*mini-pcie
规格
|
general |
|
|
cpu |
intel® 6/8/9th gen core/pentium/celeron desktop cpu, lga1151 |
|
chipset |
intel® z390, tdp 6w |
|
memory |
ddr4-2400, 2*so-dimm, up to 32gb |
|
storage |
2*sata 3.0 |
|
expansion |
1*pcie x16 slot/1*pcie x16 gf 1*mini-pcie (sata3.0 usb2.0) |
|
bios |
ami uefi bios |
| os |
windows7/8.1/10, linux |
| tpm |
ftpm2.0 |
|

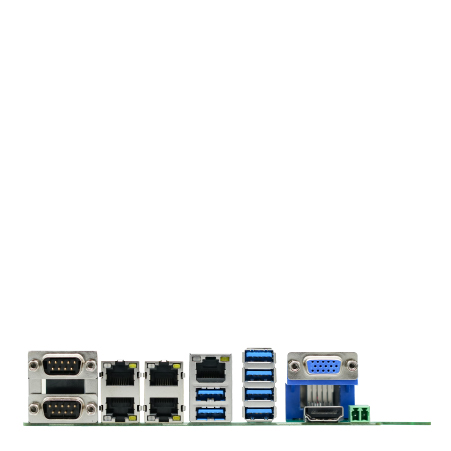

i/o |
|
|
ethernet |
1*intel® i219 gbe controller, rj45 4*intel® i210 gbe controller, rj45 |
|
serial |
4*rs232, com1-4 (support 5v@1a 12v@1a) 2*ttl com5/6, rxd/txd/rts/dtr/dsr/cts |
|
usb |
6*usb3.2 gen1, 2*usb2.0 |
|
audio |
1*realtek alc897 hda codec 1*line-out mic, internal |
|
gpio |
8*programmable gpio |
|
display |
|
|
display interface |
1*hdmi: max 4096*2304@24hz 1*vga: max 1920*1200@60hz |
|
mechanical & environment |
|
|
dimension |
208*180mm |
|
power input |
internal standard atx, atx 24p 4p |
| temperature |
operation: 0℃~60℃, storage: -20℃~75℃ |
|
relative humidity |
operation: 10%~90%, storage: 5%~95%, non-condensing |
