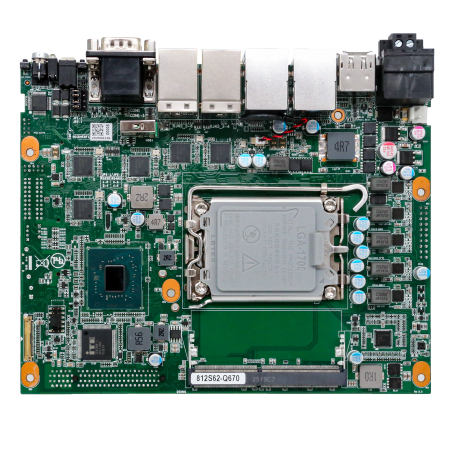

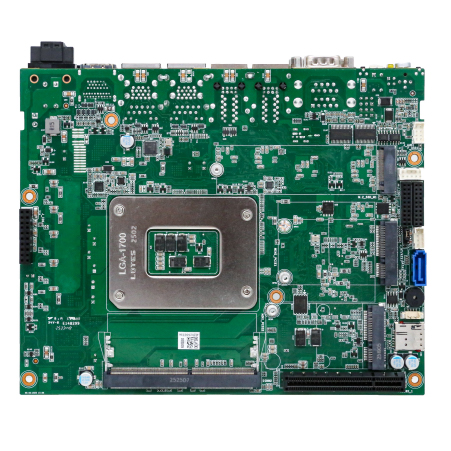

sv8-12s62
intel第12-14代core i3/5/7/9, pentium处理器, h610芯片, 2*com, 7*usb, 6*lan, 1*pcie x8, 2*mini pcie
- 支持intel第12-14代core i3/5/7/9, pentium处理器
- 采用intel h610芯片组
- 6*千兆网口, 4*usb 3.2 gen1, 3*usb 2.0, 2*uart
- 1*sata3.0, 1*m.2, 1*pcie x8, 2*mini pcie
- 1*hdmi, 1*dp , 1*edp
规格
|
general |
|
|
cpu |
intel® core™ 12/13/14th gen i3/5/7/9, pentium® processors, lga-1700 |
|
chipset |
intel® h610, max tdp 6w |
|
memory |
ddr4-3200, 2*so-dimm, up to 64gb |
|
storage |
1*sata3.0 6gbps, 1*m.2(key-m 2280, sata3.0, sata ssd) |
|
expansion |
1*pcie x8, 2*mini-pcie |
|
bios |
ami uefi bios |
| os |
windows 10/11 64bit, linux |
|

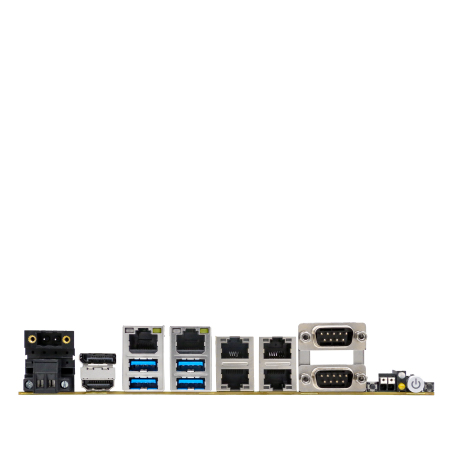

i/o |
|
|
ethernet |
6*intel® gbe controller, rj45 |
|
serial |
2*rs232/rs485 |
|
usb |
4*usb 3.2 gen1, 3*usb 2.0 |
|
audio |
realtek hda codec, with mic/line-out |
|
others |
1*power button, 1*led, 1*fan, 1*recovery |
|
display |
|
|
display interface |
1*hdmi: max 4096*2160@30hz 1*dp : max 4096*2160@60hz 1*edp: max 1920*1080@60hz |
|
mechanical & environment |
|
|
dimension |
190*153mm |
|
power input |
dc 12~24v |
| temperature |
operation: 0℃~60℃, storage: -20℃~75℃ |
|
relative humidity |
operation: 10%~90%, storage: 5%~95%, non-condensing |
