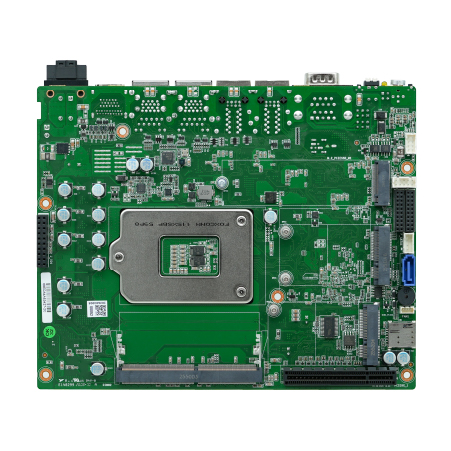

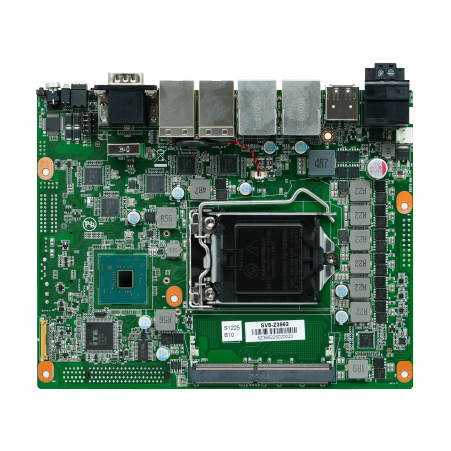

sv8-z3962
intel第6/8/9代core, pentium, celeron处理器, z390芯片, 2*com, 7*usb, 6*lan, 1*pcie x8, 2*mini-pcie
- 支持intel第6/8/9代core, pentium, celeron处理器
- 采用intel z390芯片组

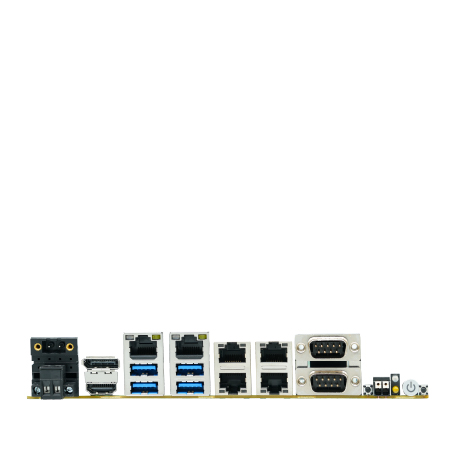

- 6*千兆网口, 4*usb 3.2 gen1, 3*usb 2.0, 2*uart
- 1*sata3.0, 1*m.2, 1*pcie x8, 2*mini-pcie
- 1*hdmi, 1*edp, 1*vga
规格
|
general |
|
|
cpu |
intel® core™ 6/8/9th gen i3/5/7/9, pentium®, celeron® processors, lga-1151 |
|
chipset |
intel® z390, max tdp 6w |
|
memory |
ddr4-2666, 2*so-dimm, up to 32gb |
|
storage |
1*sata3.0, 1*m.2(key-m 2280,pcie3.0 x4, nvme) |
|
expansion |
2*mini pcie, 1*pcie x8, 3*expansion card |
|
bios |
ami uefi bios |
| os |
windows 10/11 64bit, linux, ubuntu |
|
i/o |
|
|
ethernet |
6*intel® gbe controller, rj45 |
|
serial |
2*rs232/rs485 |
|
usb |
4*usb3.2 gen1, 3*usb 2.0 |
|
audio |
realtek hda codec, with mic/line-out |
|
others |
1*power button, 1*led, 1*fan, 1*recovery |
|
display |
|
|
display interface |
1*hdmi: max 3840*2160@30hz 1*edp: max 1920*1080@60hz 1*vga: max 1920*1200@60hz |
|
mechanical & environment |
|
|
dimension |
190*153mm |
|
power input |
dc 12/19/24v |
| temperature |
operation: 0℃~60℃, storage: -20℃~75℃ |
|
relative humidity |
operation: 10%~90%, storage: 5%~95%, non-condensing |
