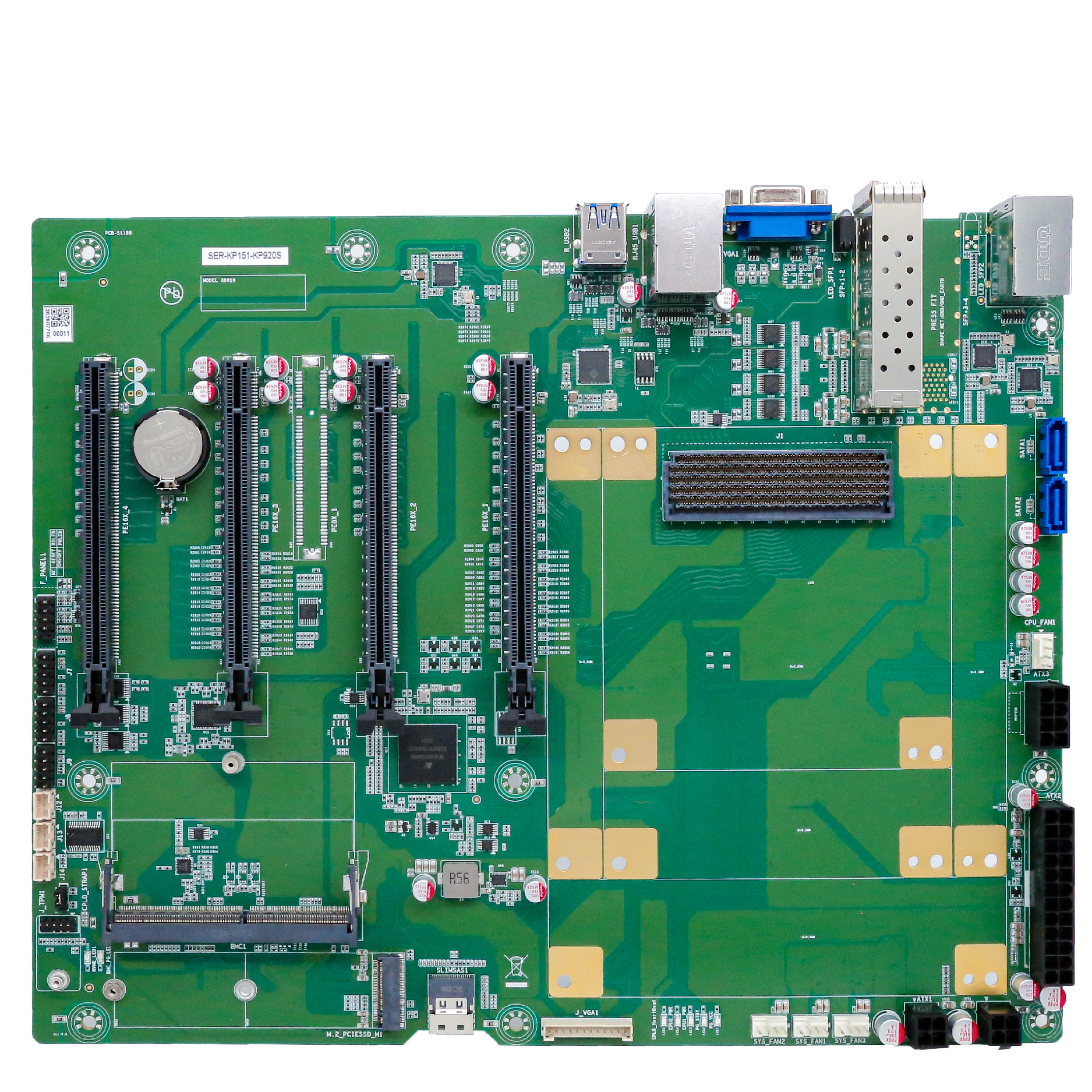

ser-kp151-kp920s
采用鲲鹏kp920/kp920s cpu模组, 1*slim-sas (xge signal), 4*pcie x16, 2*万兆网口, 3*千兆网口, 4*usb 3.2
- 采用鲲鹏kp920/kp920s cpu模组
- 1*slim-sas (xge signal)
- 4*pcle x16 (4*pcle 4.0x8/ 2*pcle 4.0 x16)
- 2*万兆网口, 3*千兆网口, 4*usb 3.2 gen1
- 2*sata 3.0, 1*m.2 m-key
规格
|
general |
|
|
cpu |
support kp920/ kp920s cpu module ddr4-2933, 8 channels, up to 128g, ecc |
|
bmc |
support seavo bmc module |
|
storage |
2*m.2 (key-m 2280, pcle 4.0 x2, ssd) |
|
expansion |
4*pcle x16 slot (4*pcle 4.0 x8/2*pcle 4.0x16) 1*slim-sas 4i (xge signal) |
| os |
linux openeuler/ ubuntu server |
|

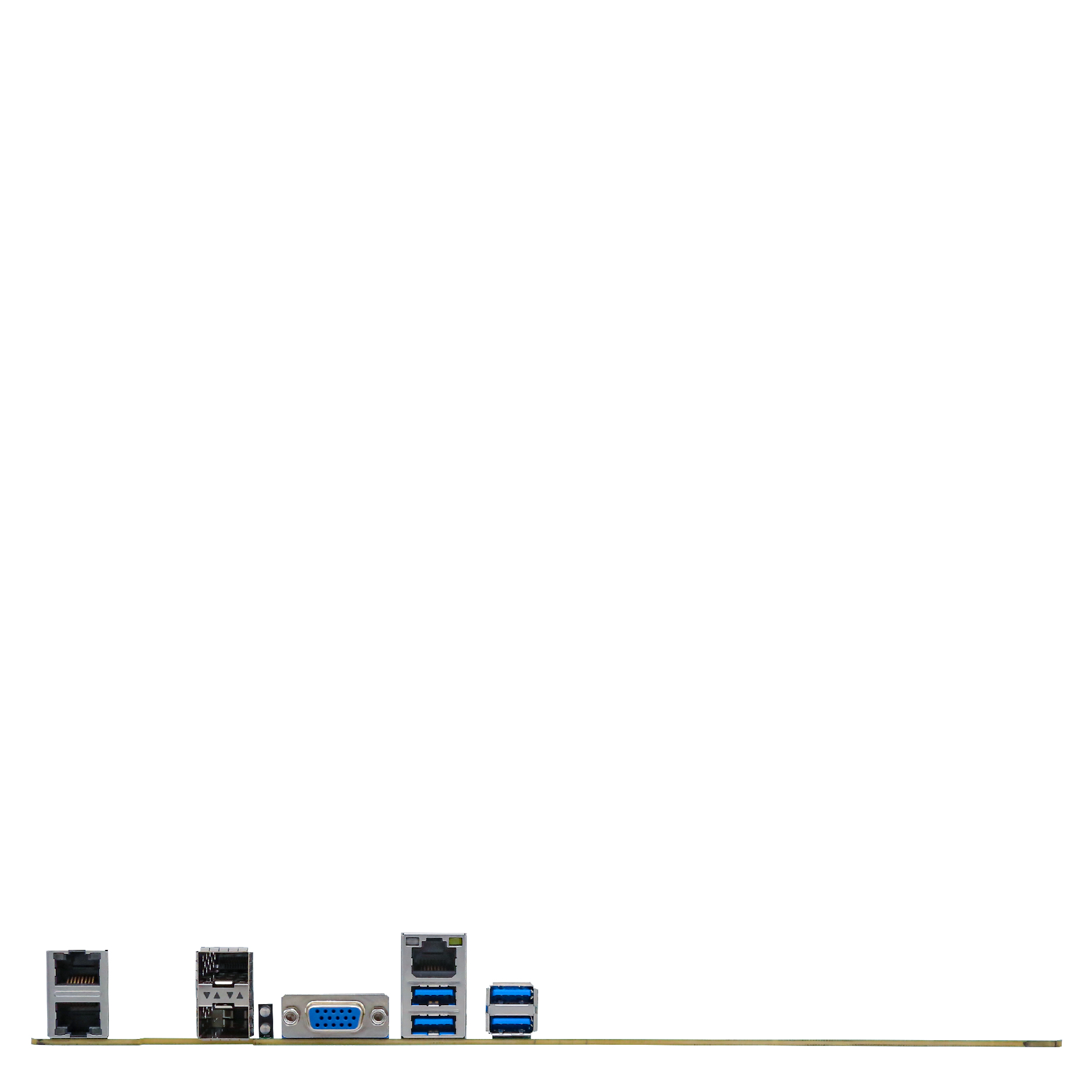

i/o |
|
|
ethernet |
2*motorcomm® gbe lan 1* gbe dedicated ipmi lan port 2*10gbe, sfp |
|
usb |
4*usb 3.2 gen 1 |
|
others |
1*tpm header |
|
display |
|
|
display interface |
1*vga |
|
mechanical & environment |
|
|
dimension |
305*244mm |
|
power input |
atx psu |
| temperature |
operation: 0℃~60℃, storage: -20℃~75℃ |
|
relative humidity |
5%~95%, non-condensing |
